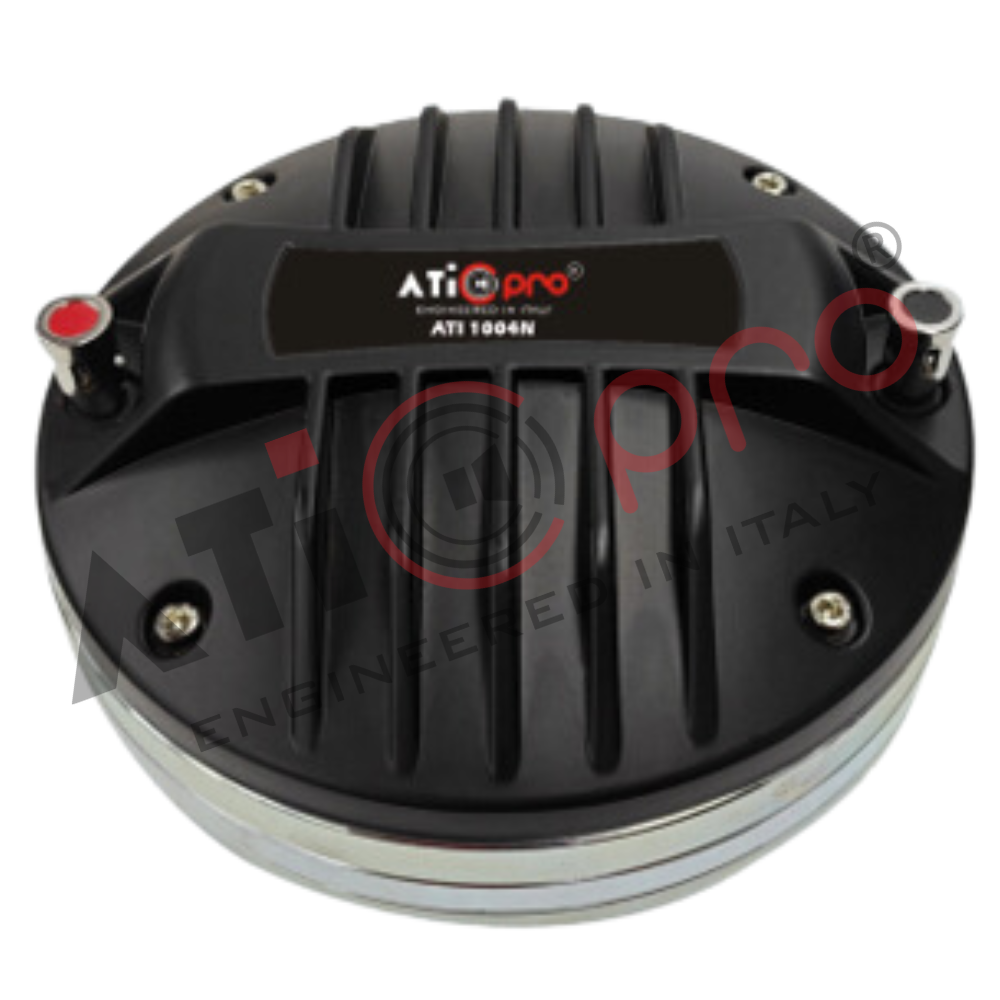

Neodymium Hf Compression Driver Unit Model ATI 1004ND
| Model | ATI-1004ND |
| Throat | 2 Inch |
| Nominal impedance | 8 Ohm |
| Sensitivity | 118dB |
| Frequency Range | 300 – 20 Khz |
| Middle Range (AES) | 150 W |
| High Range (AES) | 80 W |
| Middle Frequency Range | 300-7 Khz |
| High Frequency Range | 300-20 Khz |
| Voice Coil Diameter | 3.5 / 1.75 Inch |
| Voice Coil Material | CCAW in/out |
| Voice Coil Former | Kapton |
| Diaphragm Material | Polyester |
| Magnet Type | Neodymium |
