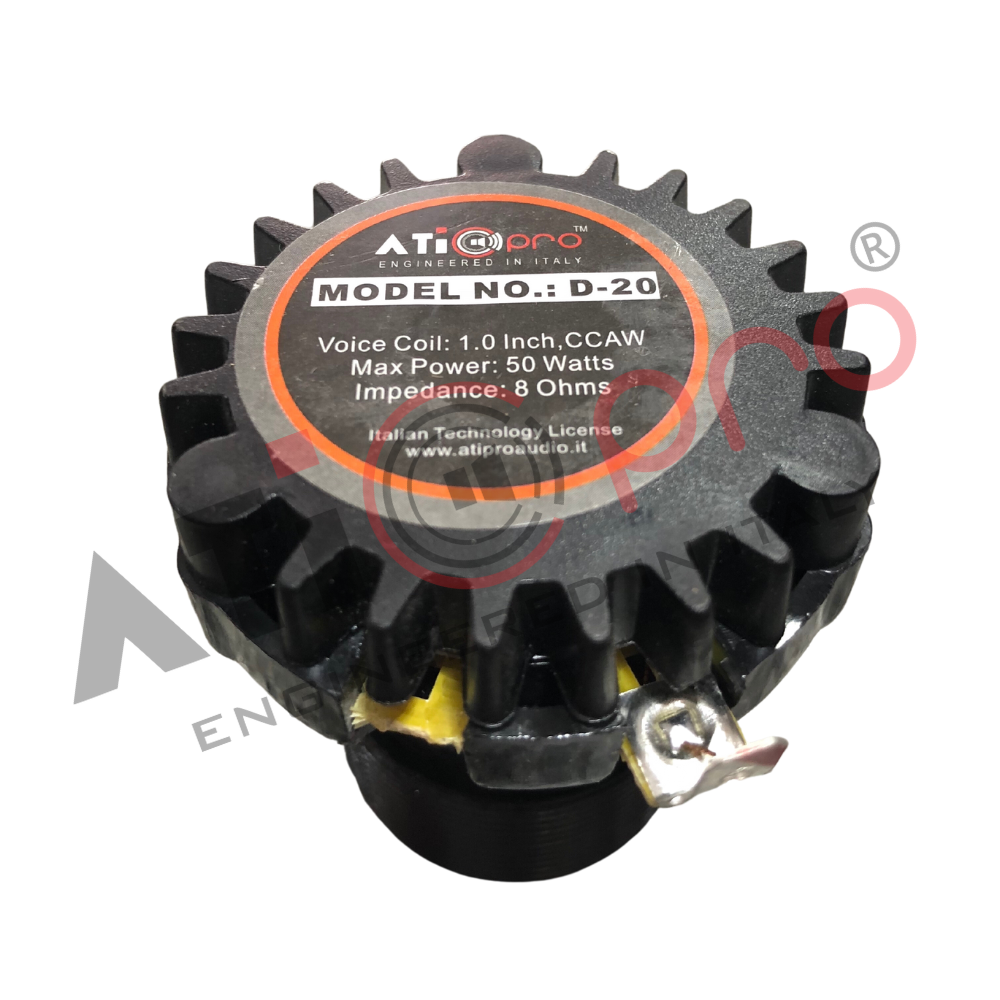

Neodymium HF Compression Driver Model D-20

Model D20
Throat 1 Inch
Nominal impedance 8 Ohm
Nominal Power Handling 20 Watt
Continuous Power Handling 40 Watt
Sensitivity(1W/1M) 105 +-2dB
Frequency Range(-10dB max) 1500 – 20000 Hz
Voice Coil Diameter 1 Inch
Voice Coil Material CCAW
Voice Coil Former Kapton
Diaphragm Material Titanium, Phenolic
Magnet Type Neo Inside Slug
Magnet Size 24mm
Cover(or Adaptor) Material Plastic
