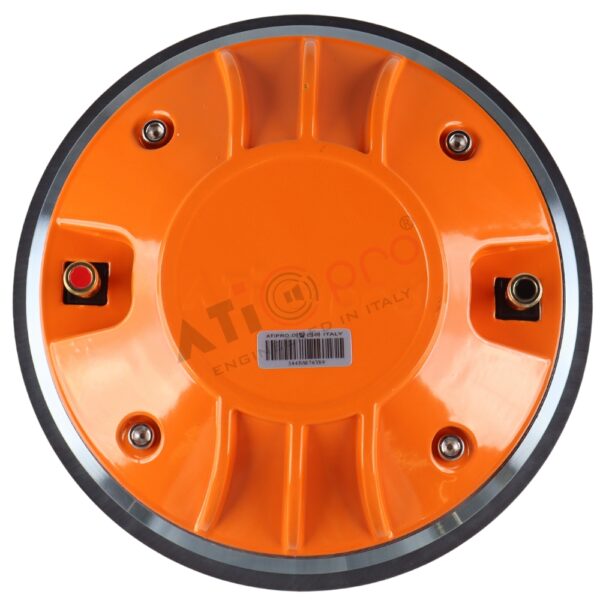

Ferrite HF Compression Driver Model A800

Throat 2 Inch
Nominal Impedance 8 Ohm
Nominal Power Handling 110 Watt
Continuous Power Handling 220 Watt
Sensitivity 106+- 2db
Frequency Range(-10dB max) 600-1600 Hz
Voice Coil Diameter 3 inch
Voice Coil Material ALR
Former Material Kapton
Diaphragm Material Blue Titanium
Magnet Type Strontium Ferrite
Magnet Sizes 170mm
Cover (or Adaptor) Material Aluminum
