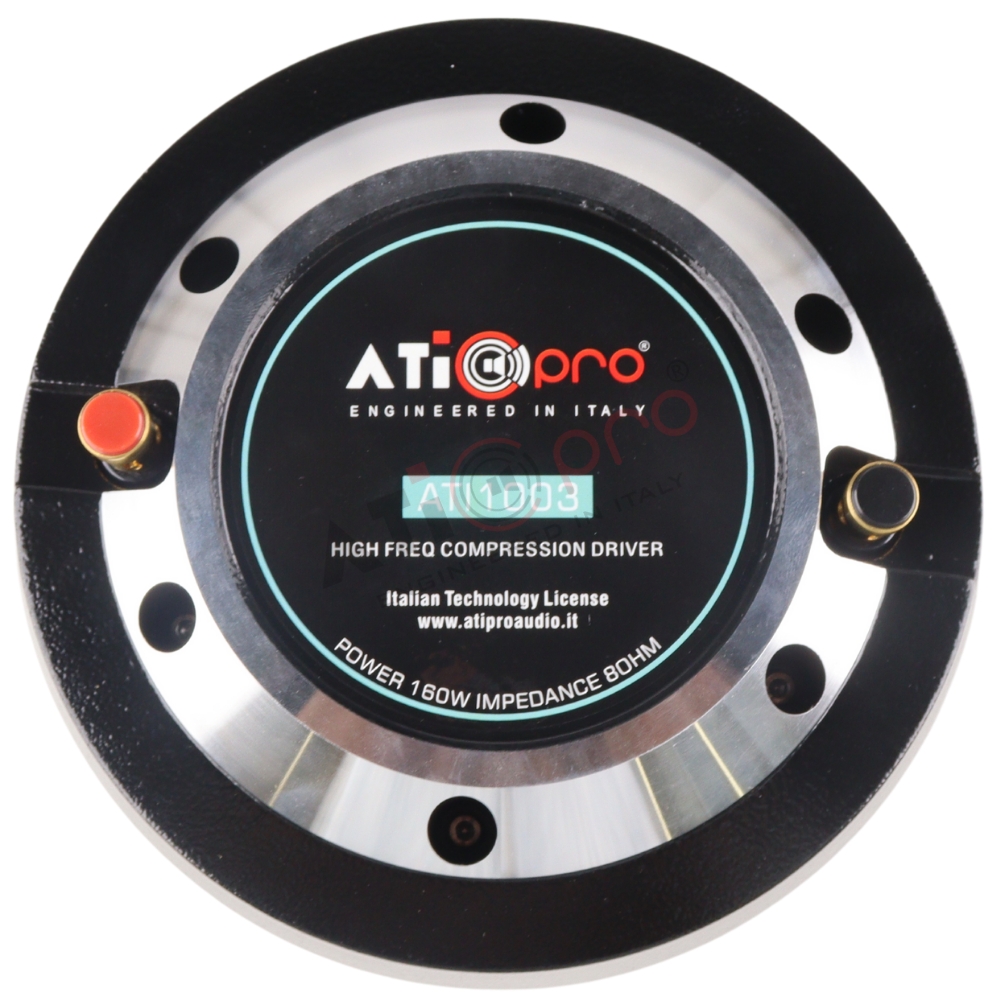

Ferrite HF Compression Driver Model 1003

Model 1003
Throat 2 Inch
Nominal impedance 8 Ohm
Nominal Power Handling 150 Watt
Continuous Power Handling 300 Watt
Sensitivity(1W/1M) 105 +-2dB
Frequency Range(-10dB max) 500 – 12000 Hz
Voice Coil Diameter 4.00 Inch
Voice Coil Material CCAW
Voice Coil Former Kapton
Diaphragm Material Titanium, Phenolic
Magnet Type Strontium Ferrite
Magnet Size 190mm
Cover(or Adaptor) Material Aluminum
